流動座地數字標牌
Mobile Stand Digital Signage

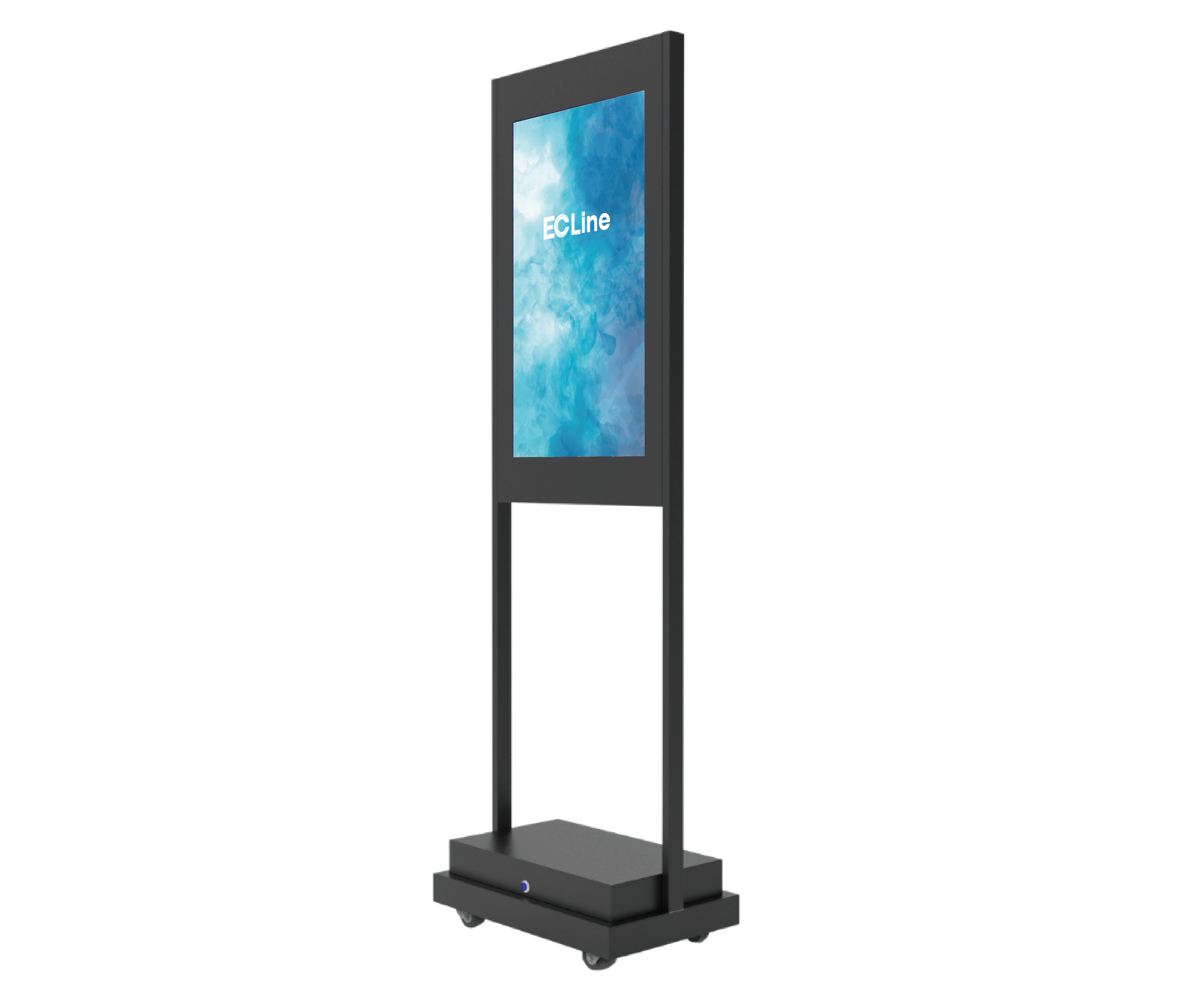

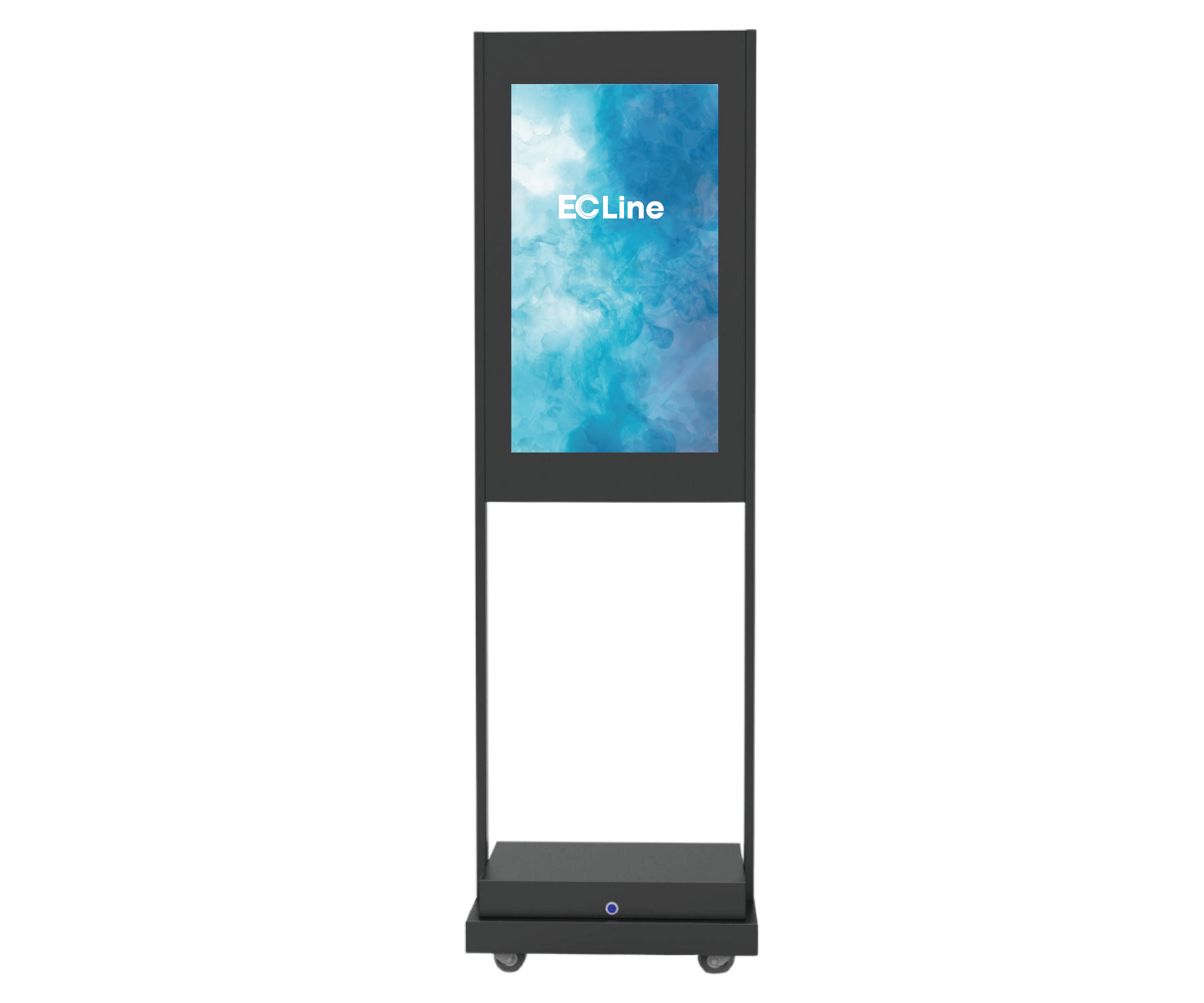

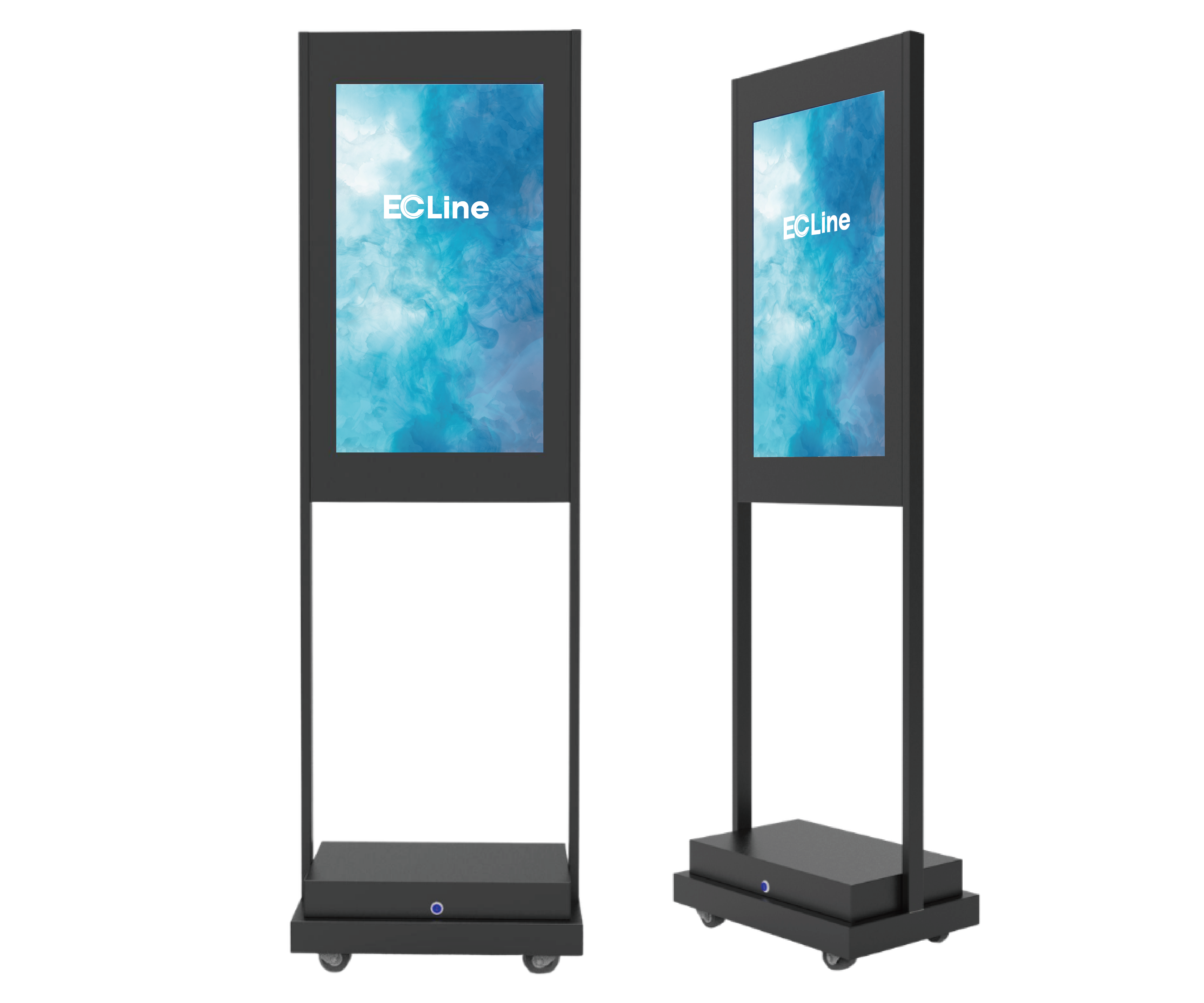

EC-FDS(E)

本系列數字標牌搭載 LG IPS 7×24 專業商用面板，提供 32 吋及 43 吋兩種尺寸選擇，機身採用不銹鋼拉絲外殼，搭配全包圍福馬輪移動支架，整體結構堅固美觀、移動靈活，適合高端商業空間全天候穩定運行。

This series digital signage is equipped with LG IPS 7×24 professional commercial panel, available in 32"and 43" sizes. It features a brushed stainless steel casing and a mobile stand with fully enclosed caster wheels, delivering a sturdy, premium build with flexible mobility, ideal for 24/7 operation in high-end commercial environments.

簡約一體化結構，適用高端商業場景

顯示面板｜Display Panel
尺寸 Size ：32" / 43"
面板：LG IPS 專業商用面板，廣視角、色彩還原真實
Panel: LG IPS professional commercial panel with wide viewing angle and accurate color reproduction
運行：支持 7×24 小時連續運行，工業級穩定耐用
Operation: 7×24 hours continuous operation, industrial-grade reliability

機身外觀｜Body & Casing
外殼：不銹鋼拉絲材質，質感高級、防指紋、抗刮、防鏽
Casing: Brushed stainless steel, premium finish, fingerprint & scratch resistant, rustproof
整體設計：簡約一體化結構，適用高端商業場景
Overall Design: Sleek integrated structure, suitable for high-end commercial spaces

支架與移動系統｜Stand & Mobility
底座支架：堅固穩定，與機身風格統一
Stand: Sturdy and stable, matching the overall design
福馬輪設計：採用全包圍式結構，保護車輪、美觀整潔
Caster Wheels: Fully enclosed design to protect wheels and maintain clean appearance
移動與固定：推動順暢，可定位固定，擺放安全穩固
Mobility & Locking: Smooth movement with lockable function for stable placement

Technical Specifications

Model

EC-FDS(E)

Screen Size

32" 43"

Resolution (pixels)

Full HD 1920 x 1080 or UHD 3840 x 2160

Brightness

500cd/m² ( Optional up to 700cd/m² )

LCD Type

LG - IPS

Response Time

8ms

Contrast Ratio

1400:1

Color System

PAL / NTSC / Auto

Touch

10-point Projected Capacitive Touch (Optional)

Viewing Angle

80°/80°/70°/70° ( Up/ Down/ Left/ Right )

Display Area

Dimension with Standard

32" : 393H x 697V mm

32" : 540W x 1700H x 40D mm | Bass : 543W x 350D mm

43" : 529H x 941V mm

43" : 676W x 1900H x 40D mm | Bass : 676W x 400D mm

O/S

Android or Windows

Operating System

Android 7.0 / 9.0 / 11 / 12 / 13 or Windows J6412 / i3-12th / i5-12th or Other

Wireless

Onboard，802.11b/g/n

LAN Connectors

Yes

HDMI Connectors

Yes

USB Connectors

Yes

Mic-in/Line-out

Yes

AC Power Switch

Yes

Audio

Built-in 8Ω5W Speaker x 2

Power Requirement

AC100V～240V，50/60Hz

Mechanical

Stainless Steel Casing

Operating Temperature

0℃ to 50℃

Storage Temperature

-20℃ to 60℃

Included

Power Cord / Remote Control
