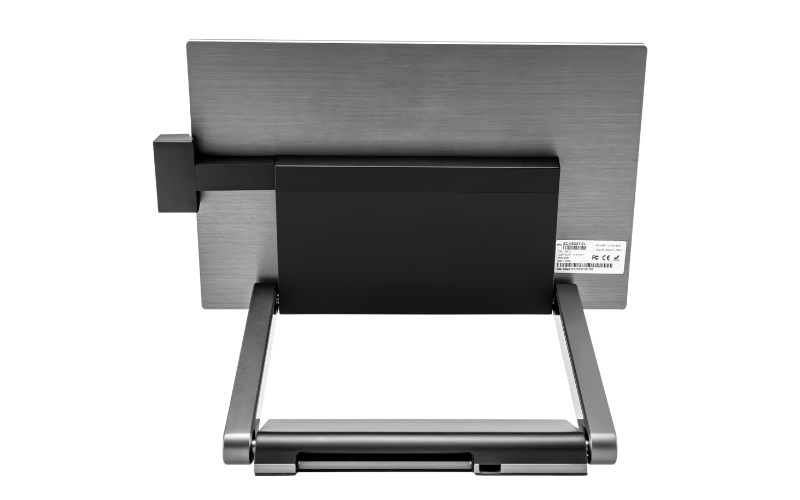

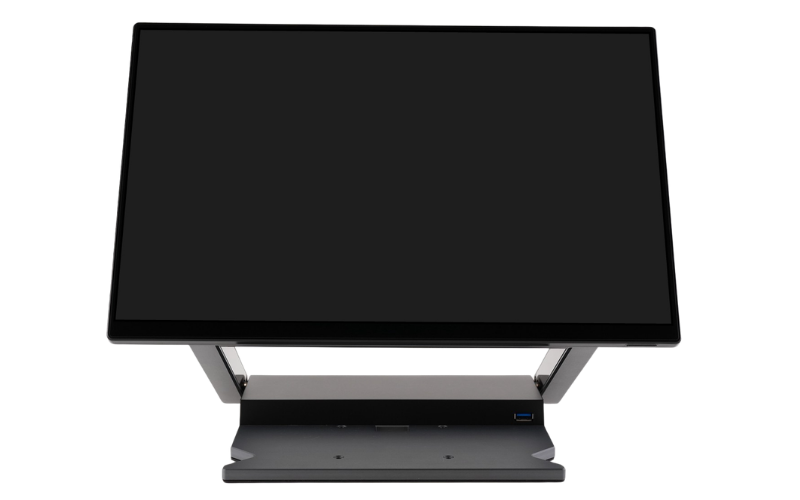

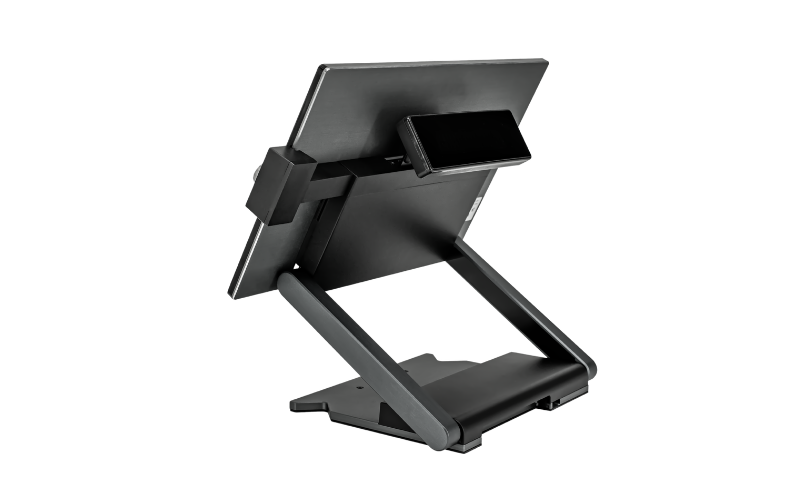

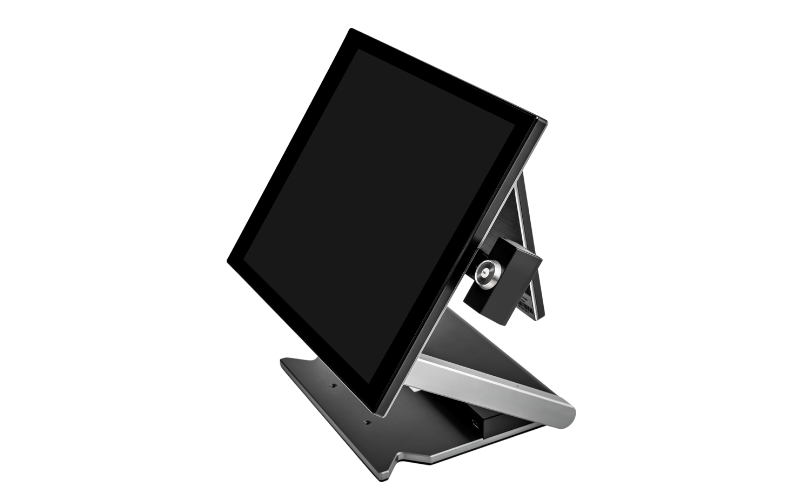

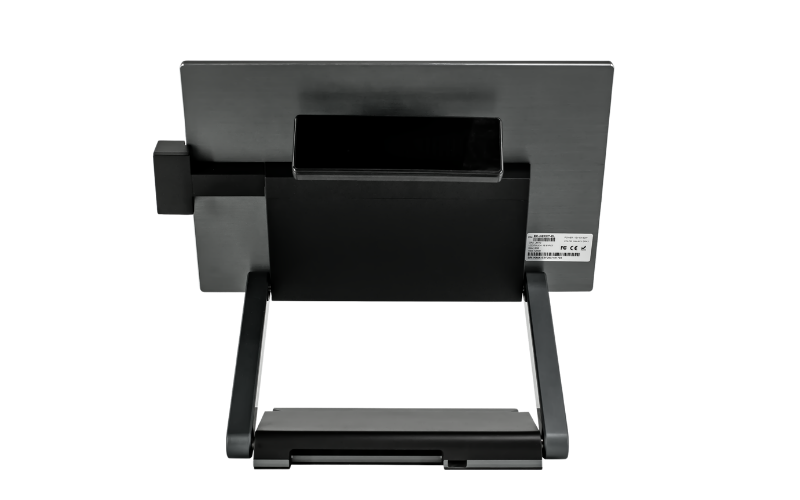

15.6" Windows POS Terminal

EC-NEXXT-P

Experience the versatility of the EC Line EC-NEXXT POS.

A lightweight and compact POS that offers you the best solution for countertop or wall- mounted operation.

Whether you are at a trade show, pop-up store, or any event requiring quick transactions, the EC-NEXXT is your ideal solution.

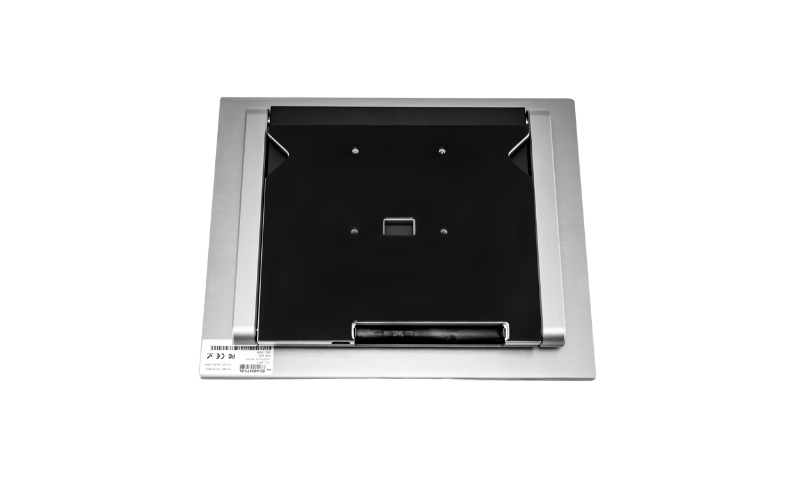

Foldable Design

The EC-NEXXT easily folds for convenient storage and transport. Its compact design makes it perfect for exhibitions, trade fairs, or concept pop-up stores.

Ergonomic Display Adjustment

The extendable arm allows you to adjust the screen vertically to an ergonomic height, ensuring user comfort during transactions. You can also align it with the height of connected printers for seamless operation.

Easy Peripheral Connectivity

Adding peripheral devices has never been easier. With USB ports, you can connect additional equipment without any screws, facilitating easy maintenance and high reliability.

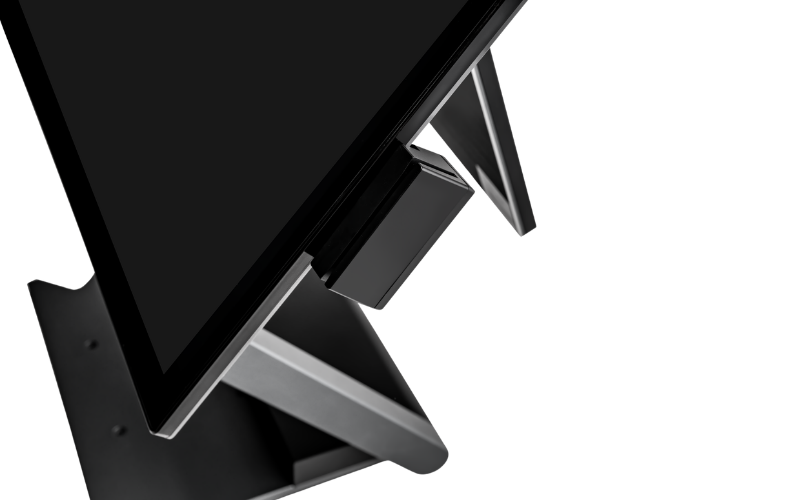

Sleek and Stylish Design

Featuring ultra-narrow bezels and a slim profile, the EC-NEXXT not only performs exceptionally but also adds a touch of elegance to your business setup.

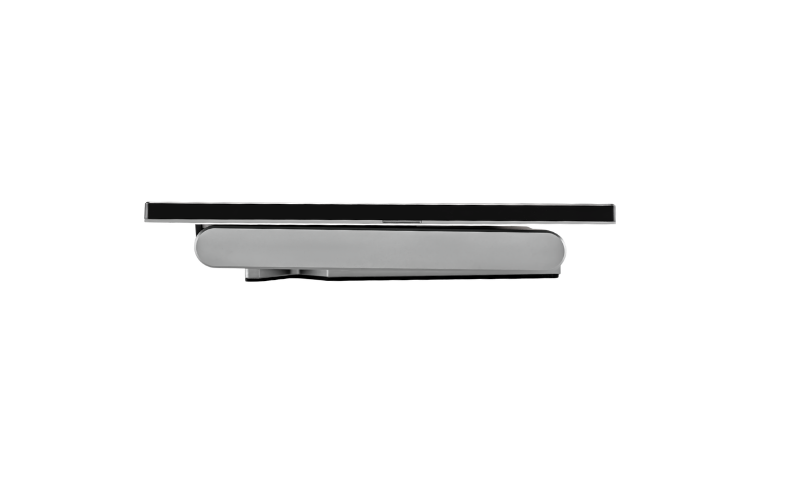

Folds flat, mounts clean, and saves you space, clutter, and shipping costs.

NEXXT is a fully foldable 15.6'' touch terminal with a beautiful, ultra-thin screen. It is perfect for wall-mounting, saving space and shipping costs.

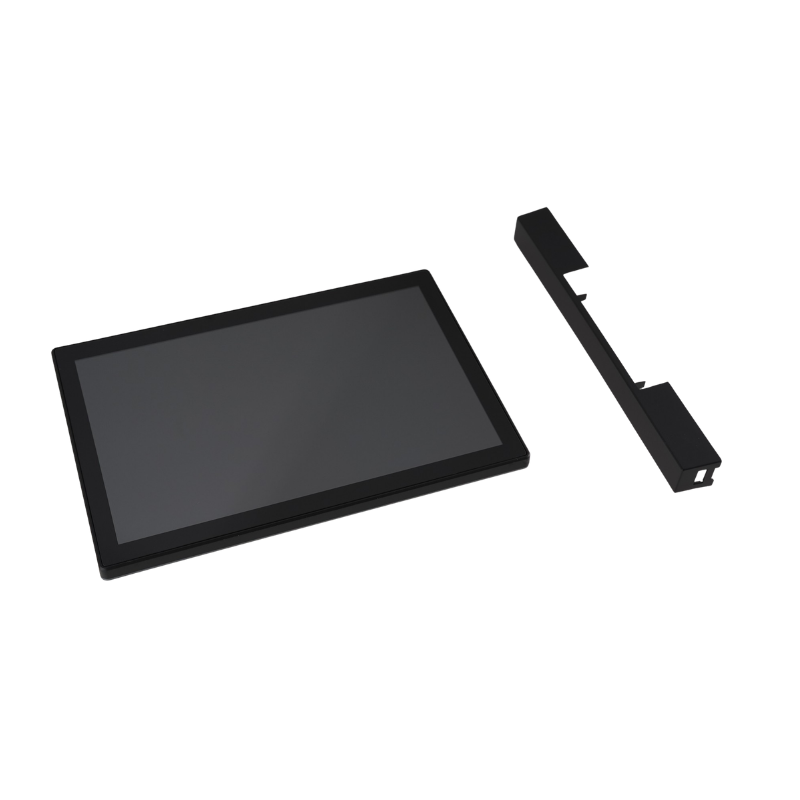

10.1'' Customer Display for NEXXT Series

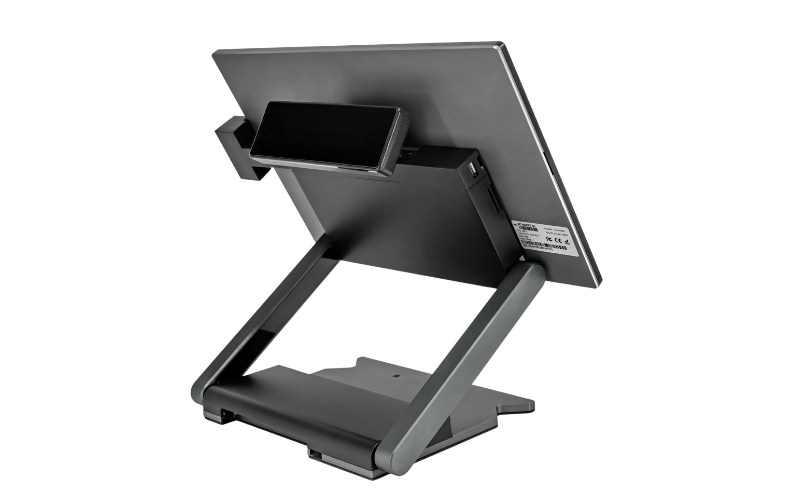

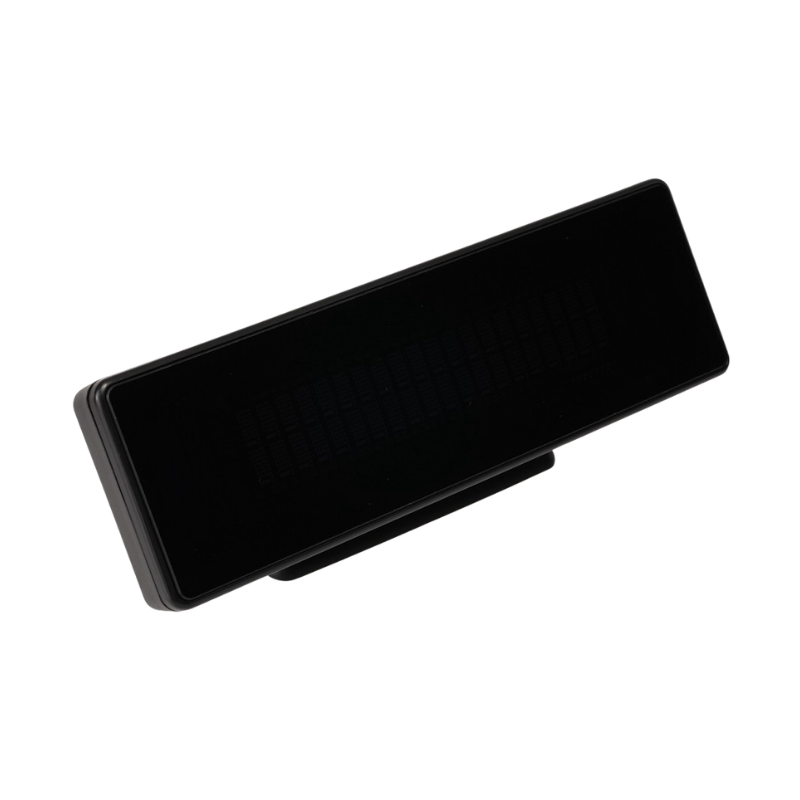

2-Line VFD for NEXXT Series

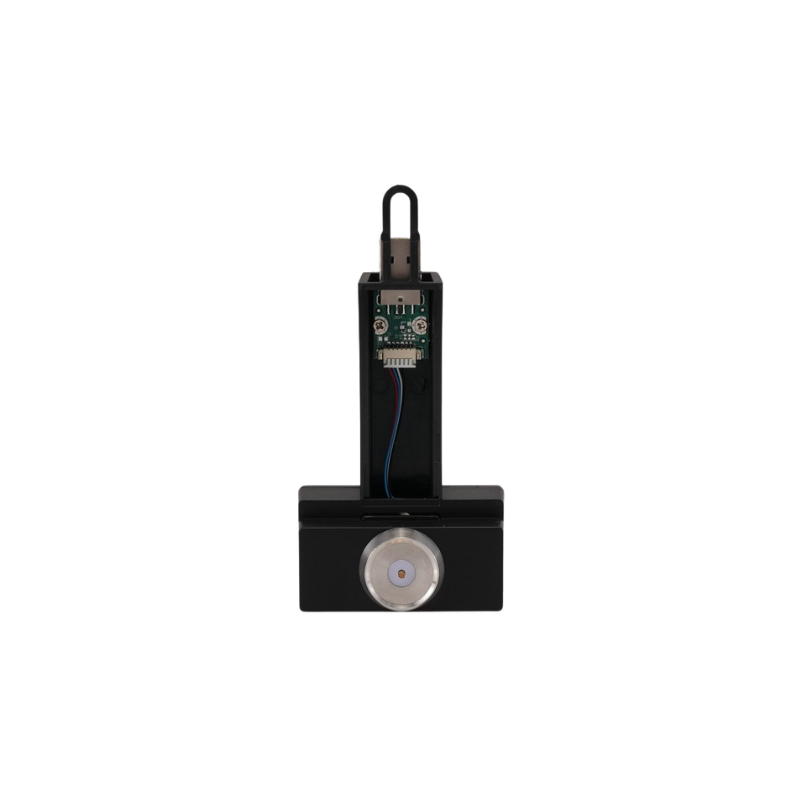

iButton for NEXXT Series

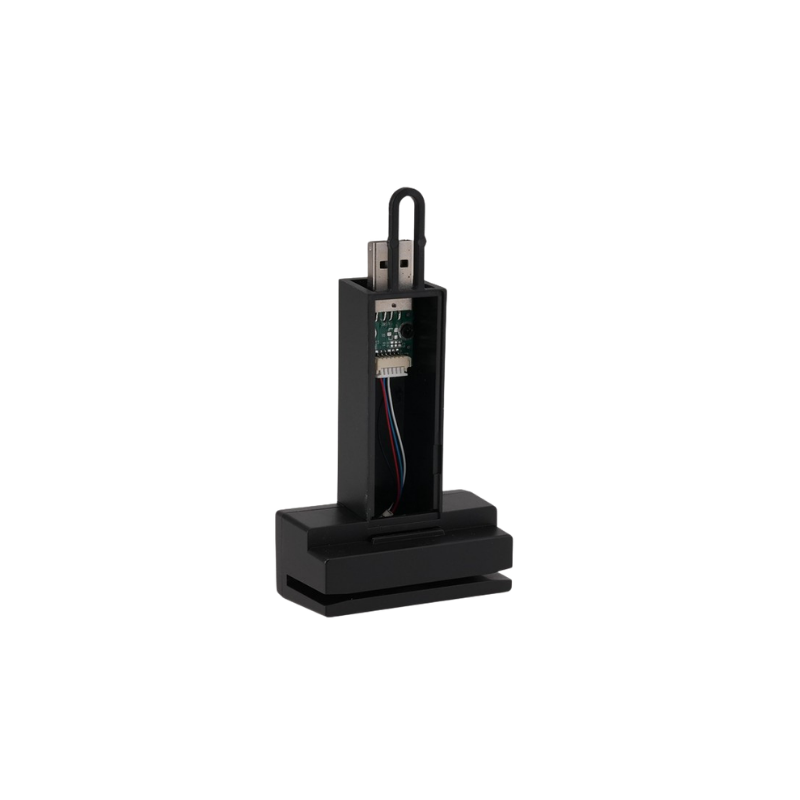

Magnetic Stripe Reader for NEXXT Series

Technical Specifications

CPU

Intel ® J6412 / i3-11th / i5-11th

Memory

DDRIV-2666/2933/3200 4GB (up to 32GB)

Storage

M.2 128GB (up to 512GB)

OS Support

Windows 10, Windows 10 IOT, Windows 11, Linux (ubuntu not less than 20.04)

Display Size

15.6 Inches

Resolution

1920 x 1080 (16:9)

Brightness

250cd/m²

Backlight Type

LED

Contrast Ratio

800:1

Response Time

25ms

Viewing Angle (Up/ Down/ Left/ Right)

80°/80°/70°/70°

Video Interface

EDP

Touch

10-point Projected Capacitive Touch

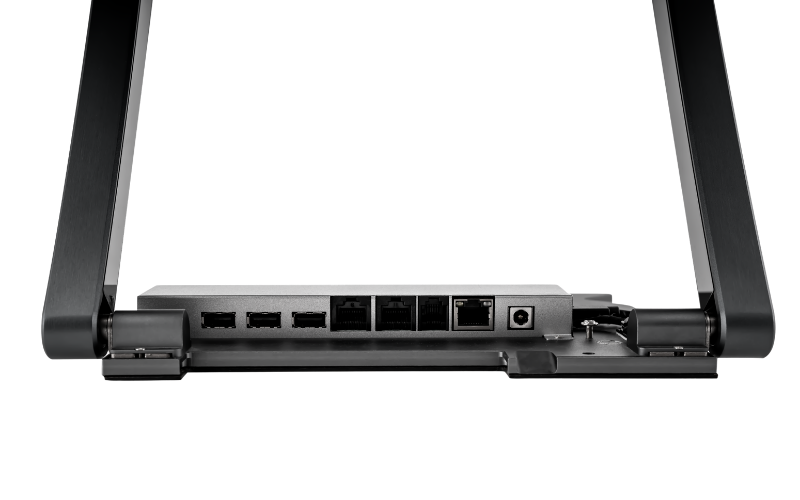

I/O Interface

1 × DC12V IN / 5 x USB2.0 / 1 × USB3.0 / 2 × RS232 / 1 × CASH DRAWER (RJ11)

Housing Material

Aluminum

VESA Mounting

75 x 75 (mm) & 100 x 100 (mm)

Dimensions (W x D x H)

365 x 233 x 45 (mm)

Packing Dimension (W x D x H)

480 x 370 x 110 (mm)

Net Weight

5 KG

Gross Weight

5.4 KG

Power Consumption

35W（MAX）

Power Input

AC 100-240V

Power Output

DC 12V/5A

Operating Temperature

-10˚C to 50˚C

Storage Temperature

-20℃ to 60℃

Humidity

10% to 85%

Safety

FCC / CE / RoHS

Optional Peripherals - VFD

2-line VFD / 10.1inch Second Display / WiFi + BT / iButton / MSR (3 Tracks Magnetic Reader)
