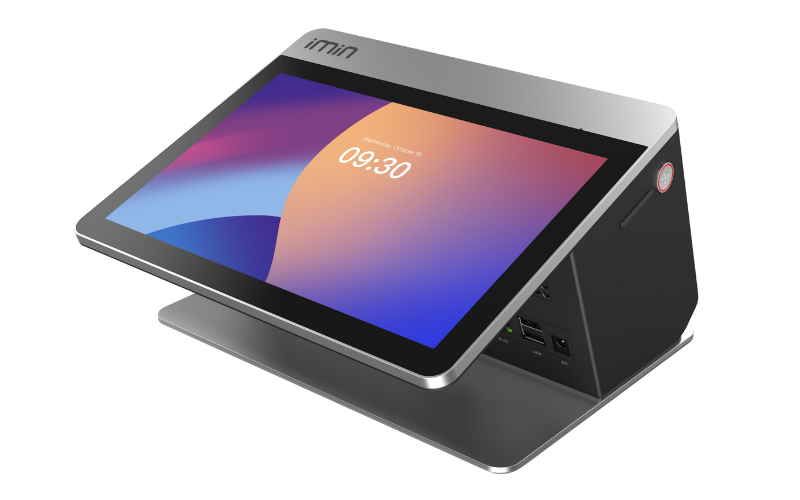

10.1" Android POS Terminal

iMin Falcon 1

The Falcon 1 is a wholesome solution to any business’s POS problems. With an all-in-one design encompassing an 80mm thermal printer, NFC payment options and a 15% increase in CPU performance, say goodbye to the clutter of devices on your countertop.

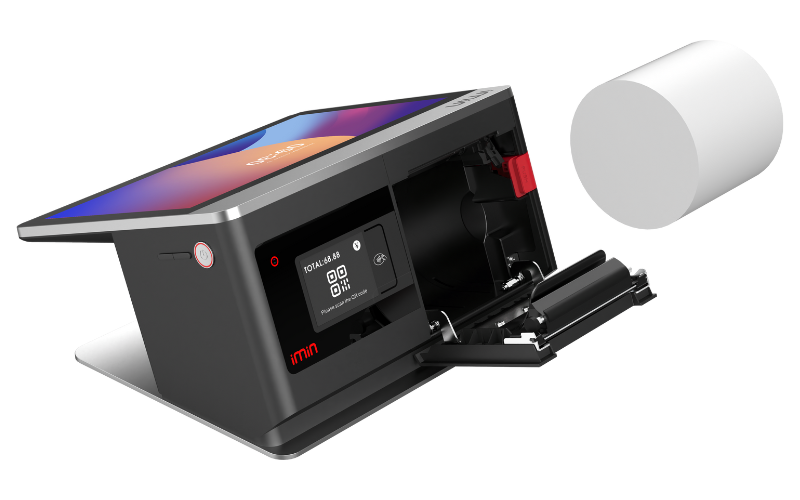

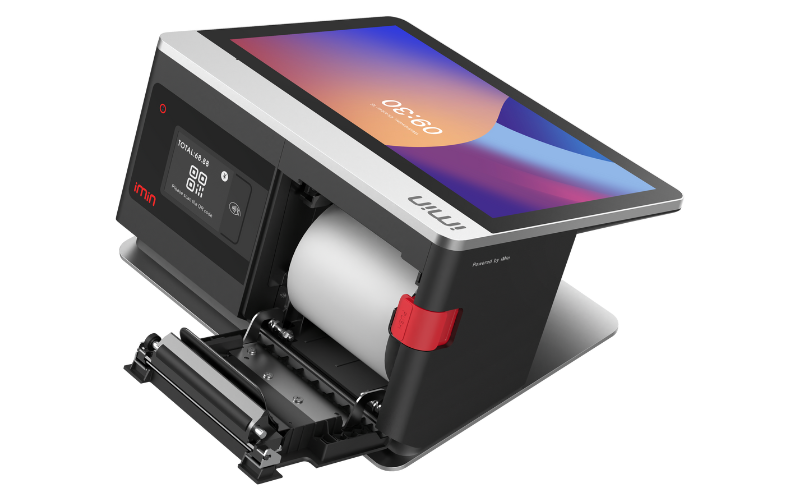

Printer

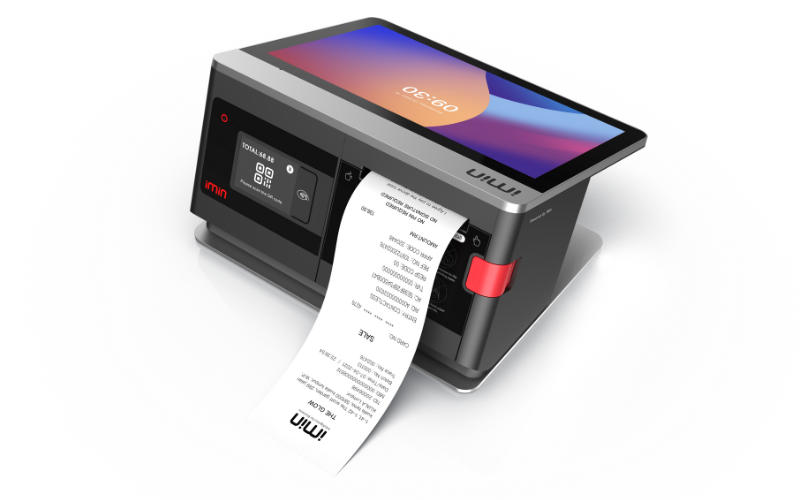

80mm*80mm Thermal printer with an automatic cutter & printing speed of up to 250mm/s

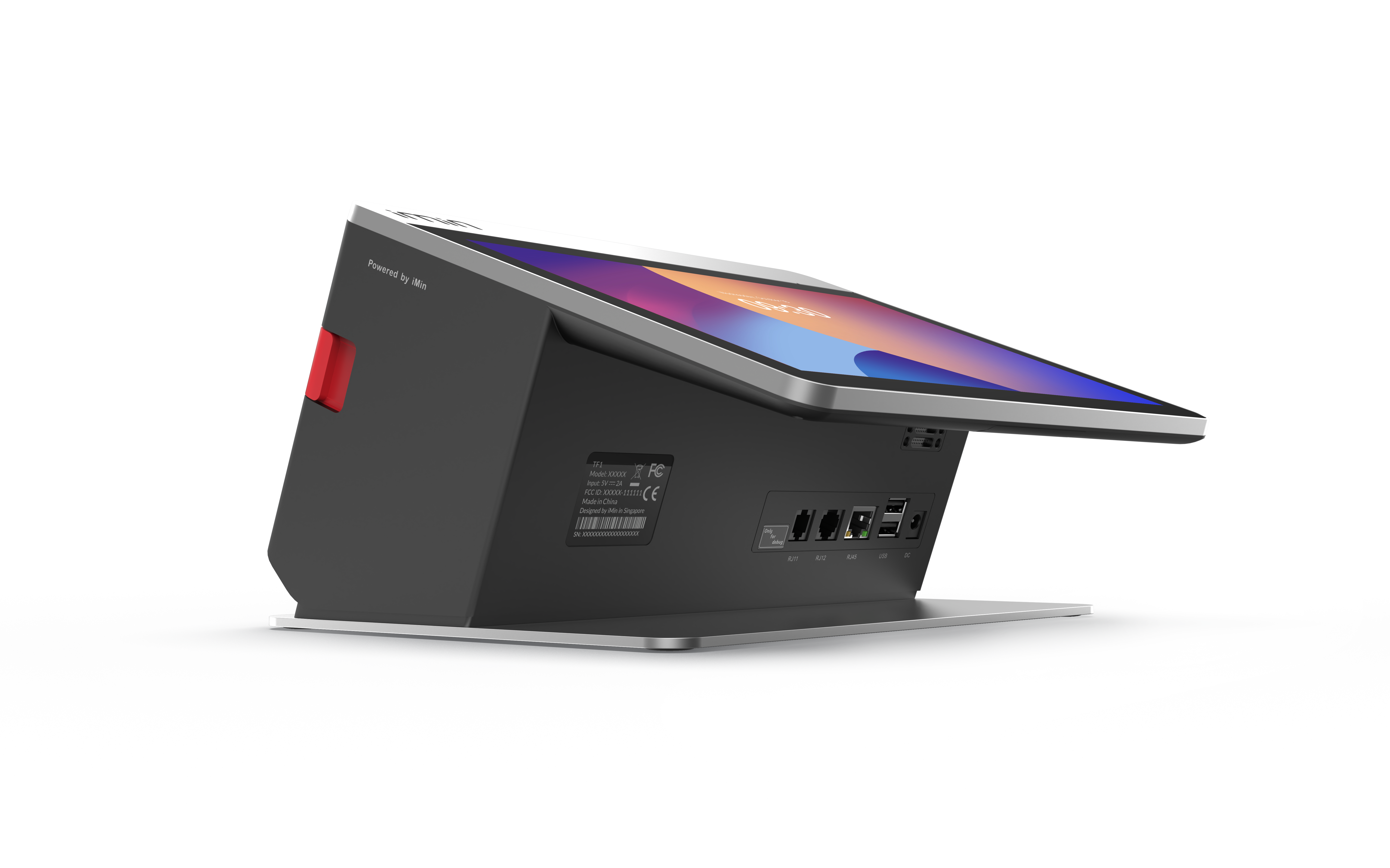

Connection Ports

Multiple Peripheral Ports to support any attachments

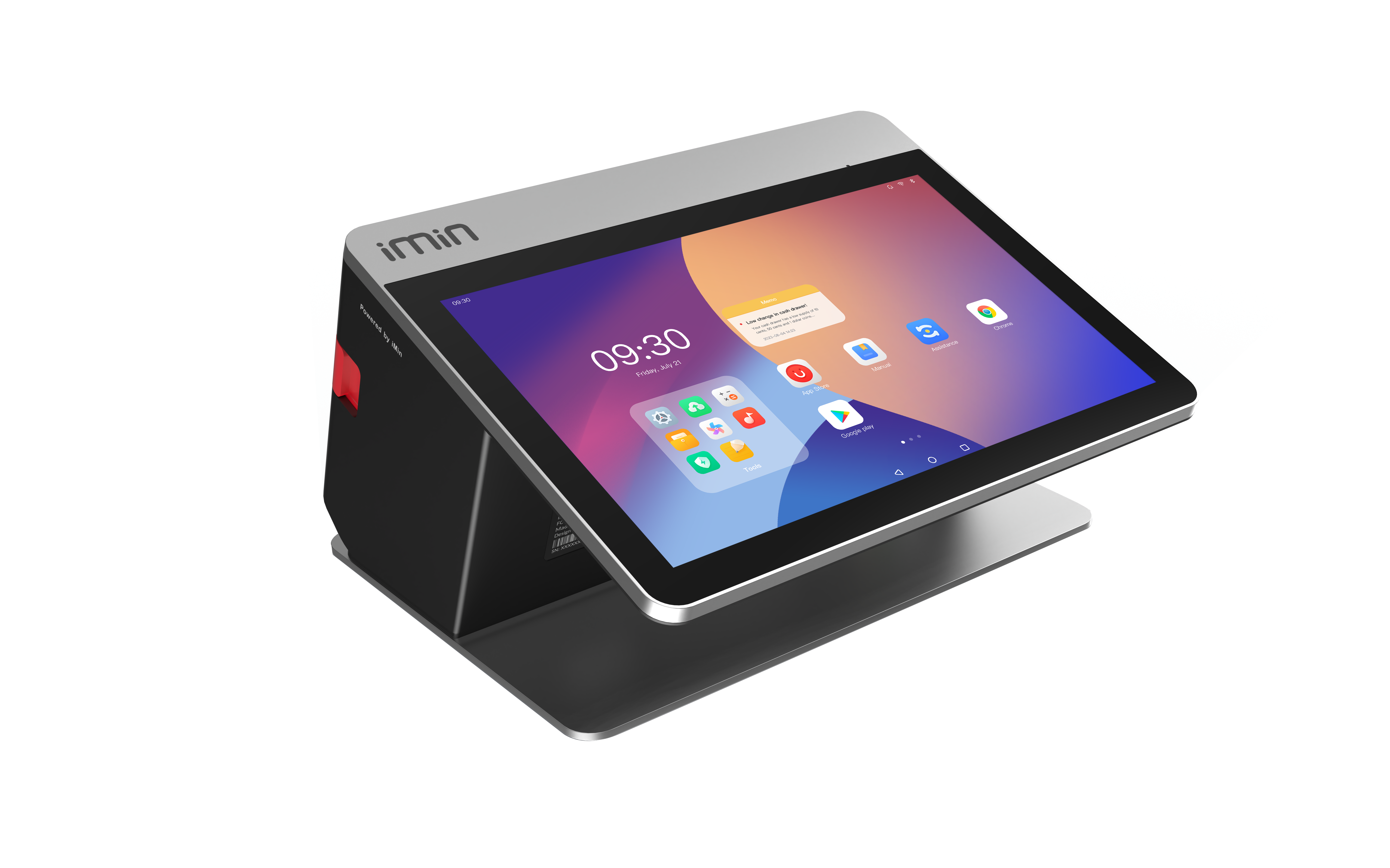

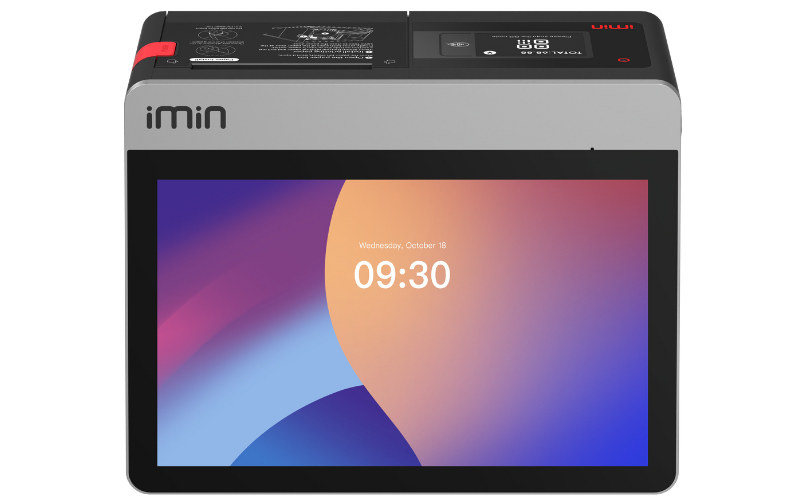

Display

10.1", 1280 x 800 display screen
Android 11 series supported

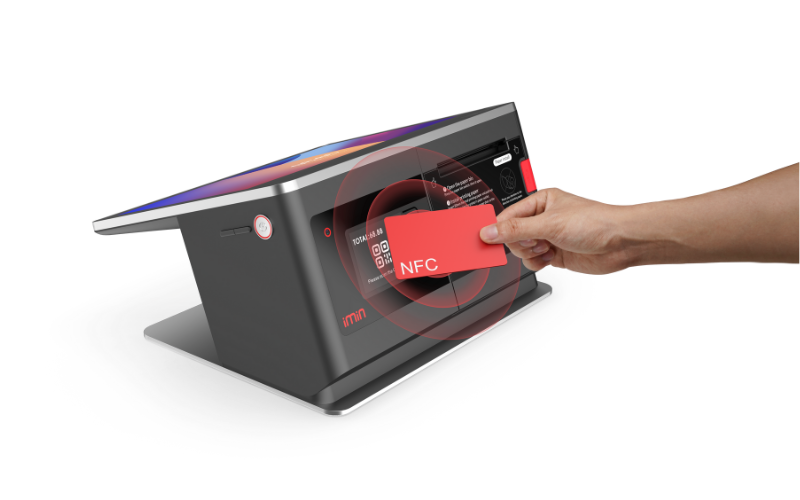

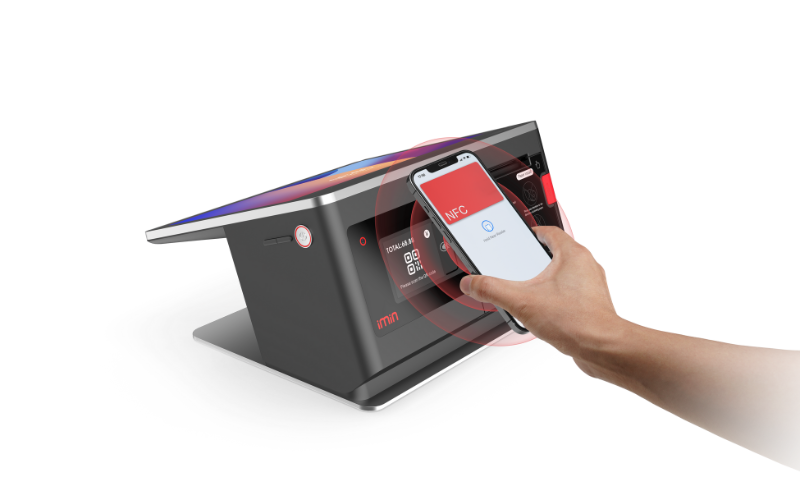

NFC (SoftPOS)

Instant payments without external hardware to delivering a clean, modern checkout experience.

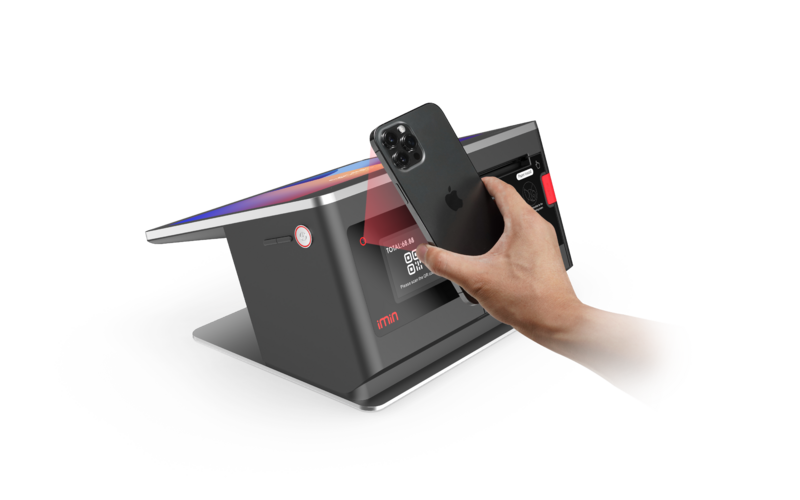

0.3M FF Camera

Built-in camera to support 1D/2D scanning.

The perfect device for any scenario.

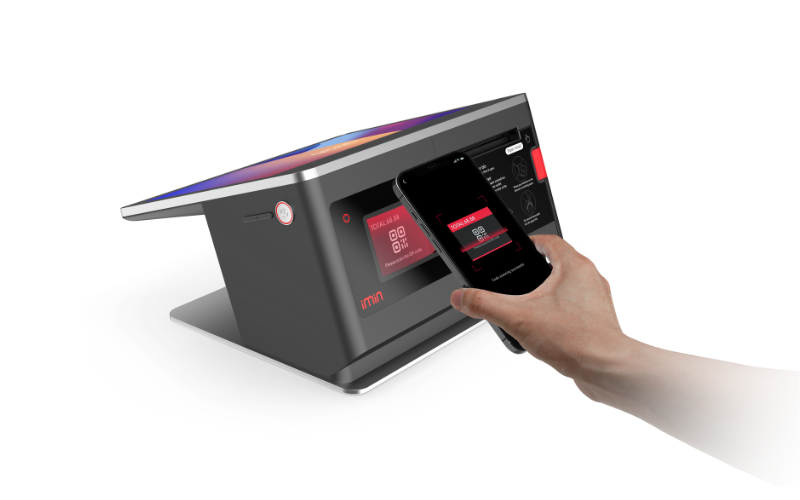

The Falcon 1 solves modern POS problems by saving space and facilitates contactless payments such as NFC and QR code scanning. Business owners can also operate on-the-go as Falcon 1 can be powered with portable chargers.

* The product pictures and display contents in the above pages are for illustration purposes only. The actual product effects (including but not limited to appearance, color, size) and screen display contents (including but not limited to background UI pictures) might differ.

The performance results are obtained from iMin’s internal laboratory and extracted from specific test environments. In actual use, there might be a difference in performance due to individual differences in product, software, use conditions and environmental factors.

Technical Specifications

Processor

Octa-Core (Dual-Core ARM Cortex-A75, up to 2.0GHz, Six-Core ARM Cortex-A55, up to 2.0GHz)

Touch Panel

Multi-point Capacitive Touch Panel

Memory

2GB RAM + 16GB / ROM 2GB RAM + 16GB ROM (NFC) / 4GB RAM + 32GB ROM (NFC)

Display

10.1” 1280 x 800 and 2.4” LED Screen

Operating System

Android 11, 64 bit

Connectivity

Ethernet: 100M, Wireless: Wi-Fi 5, 802.11 a/b/g/n/ac(2.4GHz/5GHz), Bluetooth 5.0, 2G/3G/4G LTE, GPS, NFC (Optional)

Camera

0.3M FF, Support 1D Barcode / 2D QR Scanning

Speaker

1.5W Mono

Environment

Operating temperature: 0 ~ 40℃, Storage temperature: -10 ~ 50℃

Dimensions

248 x 199 x 140mm

Weight

1.785Kg

Button

Power key, Vol+/Vol- key

Printer

High speed printing, up to 250mm/s, With automatic cutter, 80mm in width & 80mm in diameter

Power Adapter

Input: 100 ~ 240V; Output: 24V / 2.5A

Peripheral Ports

USB Type-A x 2，DC Jack x 1 Nano Sim x 1，PSAM x 1, TF Card x 1, RJ11 x 1, RJ12 x 1, RJ45 x 1

Certification

FCC CE IMDA WEEE
